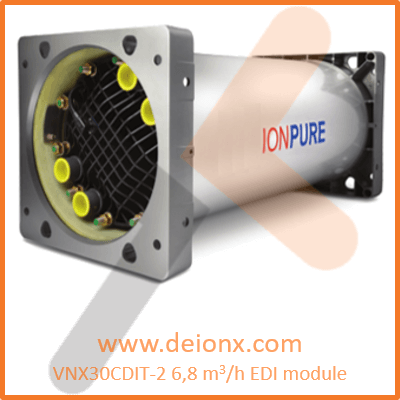

VNX15CDIT/30CDITThe Ionpure® VNX-CDIT continuous Electrodeionization (CEDI) module, now proven suitable for high TDS applications. For instance, the Inonpure® VNX-CDIT features expanded capabilities for feed water challenges up to 750 ppm as NaCl and silica up to 20 ppm.VNX55-HHThe VNX55-HH module features proven Ionpure continuous electrodeionization (CEDI) technology to produce high purity water. The internal design can handle a high feed water hardness. This while still able to provide ultrapure water quality-water at the high flow rate required for many applications, specifically within the power industry.VNX55-E/EXThe VNX55-E and VNX55-EX high flow module feature proven Ionpure® continuous electrodeionization (CEDI) technology to produce high purity water. Performance is optimized for firstly, high recovery and secondly, the ultrapure water demands of the microelectronics industry.VNX28EP/55EPThe Ionpure® VNX28EP and VNX55EP high flow module feature proven continuous electro deionization (CEDI) technology to produce high purity water. The VNX-EP range provides ultrapure water for firstly, critical boilers in the power industry and secondly, other bulk deionization high purity applications.

VNX15CDIT/30CDIT

  • Power supplies
  • Power controllers
  • Earth plugs
  • Connectors
    • High purity 50mm butt weld connection kits adapter (4)/plug (4):Natural polypropylene — Model #IP-VNX-CK-PP-2
    • Standard 1.5” female socket connection kits (4)/plug (4):PVC — Model #IP-VNX-CK-PVC-2
  • Systems

VNX55HH

  • Power supplies
  • Power controllers
  • Earth plugs
  • Connectors
  • Systems

VNX55E/EX

  • Power supplies
  • Power controllers
  • Earth plugs
  • Connectors
    • High purity 50mm butt weld connection kits adapter (4)/plug (4):Natural polypropylene — Model #IP-VNX-CK-PP-2
    • Standard 1.5” female socket connection kits (4)/plug (4):PVC — Model #IP-VNX-CK-PVC-2
  • Systems

VNX28EP/55EP

  • Power supplies
  • Power controllers
  • Earth plugs
  • Connectors
    • High purity 50mm butt weld connection kits adapter (4)/plug (4):Natural polypropylene — Model #IP-VNX-CK-PP-2
    • Standard 1.5” female socket connection kits (4)/plug (4):PVC — Model #IP-VNX-CK-PVC-2
  • Systems

VNX15CDIT/30CDIT

  • RO reject treatment
  • High TDS applications

VNX55HH

  • Power Industry

VNX55E/EX

  • Pharmaceutica
  • HPI/CPI
  • Food and Beverage
  • General Industry Electro Separation
  • Semiconductor and Electronics Industry

VNX28EP/55E

  • Power Industry
  • General Industry Electro Separation
  • Semiconductor and Electronics Industry

VNX15CDIT/30CDIT

SpecificationsVNX15CDITVNX30CDIT
Shipping weight276,7276,7kg
Operating weight190,5374,2kg
Diameter445445mm
Length11182130mm
Wide508508mm
Depth508508mm
Minimum flowrate1,77,5m3/h
Nominal flowrate3,412,5m3/h
Maximum flowrate5,116,7m3/h
Typical Performance (High TDS)
Typical Performance
Recovery68%68%
Salt (TDS) Removal80 %80 %
Product Quality
Sodium (Na+) Removal99,5+ %99,5+ %
Chloride (CI-) Removal99,5+ %99,5+ %
Silica (SiO2) Removal90 - 99 %90 - 99 %
* Actual performance may be determined on projection from DeionX.
Operating Parameters
Recovery80 – 90 %80 – 90 %
Maximum feed pressure5,5 bar5,5 bar
DC Voltage0 – 600 VDC0 – 600 VDC
DC Amperage at hardness0 – 1,5 ppm1,5 – 2,5 ppm2,5 _ 4,0 ppmMaximum Current6,6 Amp4,0 Amp2,0 AmpMaximum Current6,6 Amp4,0 Amp2,0 Amp
Maximum Feedwater Specifications
Feed water conductivity equivalent, including CO2 and Silica< 1500 µS/cm< 1500 µS/cm
Temperature min to max5 to 45 ⁰C5 to 45 ⁰C
Inlet pressure1,4 - 7 bar1,4 - 7 bar
Maximum Total chlorine (as CI2 )< 0,02 ppm< 0,02 ppm
Iron (as Fe)< 0,01 ppm< 0,01 ppm
Manganese (as Mn)< 0,01 ppm< 0,01 ppm
Sulfide (S-)< 0,01 ppm< 0,01 ppm
PH4 - 114 - 11
Total hardness (as CaCO3)> 4,0 ppm> 4,0 ppm
Dissolved organics (TOC as C)< 0,5 ppm< 0,5 ppm
Silica (SiO2)< 2,0 ppm< 2,0 ppm

VNX55HH

SpecificationsVNX55HH
Shipping weight276,7kg
Operating weight374,2kg
Diameter445mm
Height2130mm
Wide508mm
Depth508mm
Minimum flowrate4,5 to 5,2m3/h
Nominal flowrate10 to 11,4m3/h
Maximum flowrate12,6 to 14,1m3/h
Typical Performance
Product Quality
Product Resistivity 1-pass RO>16 MΩ.cm*
Sodium (Na+) Removal>99,5 %
Chloride (CI-) Removal>99,8 %
Silica (SiO2) Removal>90 %
* Actual performance may be determined on projection from DeionX.
Operating Parameters
Recovery80 – 90 %
DC Voltage0 – 600 VDC
DC Amperage0 – 13,2 Amp
Pressure Drop Range at Nominal Flow0,7 – 7 bar
Maximum Feedwater Specifications
Feed water conductivity equivalent, including CO2 and Silica< 40 µS/cm
Feed water sourceRO permeate
Temperature min to max5 to 45 ⁰C
Inlet pressure1,4 - 7 bar
Maximum Free chlorine (as CI)< 0,02 ppm
Iron (as Fe)< 0,01 ppm
Manganese (as Mn)< 0,01 ppm
Sulfide (S-)< 0,01 ppm
PH4 - 11
Total hardness (as CaCO3)> 2,0 ppm
Dissolved organics (TOC as C)< 0,5 ppm
Silica (SiO2)< 1,0 ppm

VNX55E/EX

SpecificationsVNX55-EVNX55-EX
Shipping weight276,7276,7kg
Operating weight374,2374,2kg
Diameter445445mm
Height21302130mm
Wide508508mm
Depth508508mm
Minimum flowrate7,57,5m3/h
Nominal flowrate12,512,5m3/h
Maximum flowrate16,516,5m3/h
Typical Performance
Product Quality
Product Resistivity 2-pass RODI water>17,5 MΩ.cm*>18 MΩ.cm*>17,5 MΩ.cm*>18 MΩ.cm*
Sodium (Na+) Removal99,8 %99,9 %
Chloride (CI-) Removal99,8 %99,9 %
Silica (SiO2) Removal≥95 %99 %
Boron (B) Removal≥95 %99 %
* Actual performance may be determined on projection from DeionX.
Operating Parameters
Recovery98,5 – 99 %95 – 97,5 %
DC Voltage0 – 600 VDC0 – 600 VDC
DC Amperage0 – 13,2 Amp0 – 13,2 Amp
Pressure Drop Range at Nominal Flow0,7 – 1,4 bar0,7 – 1,4 bar
Maximum Feedwater Specifications
Feed water conductivity equivalent, including CO2 and Silica< 10 µS/cm< 10 µS/cm
Feed water source2 Pass RO permeate or DI water2 Pass RO permeate or DI water
Temperature min to max20 to 45 ⁰C20 to 45 ⁰C
Inlet pressure1,4 - 7 bar2,1- 7 bar
Maximum Free chlorine (as CI)< 0,02 ppm< 0,02 ppm
Iron (as Fe)< 0,01 ppm< 0,01 ppm
Manganese (as Mn)< 0,01 ppm< 0,01 ppm
Sulfide (S-)< 0,01 ppm< 0,01 ppm
PH4 - 114 - 11
Total hardness (as CaCO3)< 1,0 ppm< 1,0 ppm
Dissolved organics (TOC as C)< 0,5 ppm< 0,5 ppm
Silica (SiO2)< 0,2 ppm< 0,5 ppm

VNX28EP/55E

SpecificationsVNX28-EPVNX55-EP
Shipping weight276,7276,7kg
Operating weight374,2374,2kg
Diameter445445mm
Length11182130mm
Wide508508mm
Depth508508mm
Minimum flowrate2,87,5m3/h
Nominal flowrate6,212,5m3/h
Maximum flowrate9,416,7m3/h
Typical Performance
Product Quality
Product Resistivity 1-pass RO2-pass RODI water>17 MΩ.cm*>17,5 MΩ.cm*>18 MΩ.cm*>17 MΩ.cm*>17,5 MΩ.cm*>18 MΩ.cm*
Sodium (Na+) Removal99,8 %99,9 %
Chloride (CI-) Removal99,8 %99,9 %
Silica (SiO2) Removal≥95 %≥95 %
Boron (B) Removal≥95 %≥95 %
* Actual performance may be determined on projection from DeionX.
Operating Parameters
Recovery90 – 95 %90 – 95 %
DC Voltage0 – 600 VDC0 – 600 VDC
DC Amperage0 – 6,6 Amp0 – 13,2 Amp
Pressure Drop Range at Nominal Flow1,4 – 7 bar1,4 – 7 bar
Maximum Feedwater Specifications
Feed water conductivity equivalent, including CO2 and Silica< 40 µS/cm< 40 µS/cm
Feed water sourceRO permeate or DI waterRO permeate or DI water
Temperature min to max5 to 45 ⁰C5 to 45 ⁰C
Inlet pressure1,4 - 7 bar2,1- 7 bar
Maximum Free chlorine (as CI)< 0,02 ppm< 0,02 ppm
Iron (as Fe)< 0,01 ppm< 0,01 ppm
Manganese (as Mn)< 0,01 ppm< 0,01 ppm
Sulfide (S-)< 0,01 ppm< 0,01 ppm
PH4 - 114 - 11
Total hardness (as CaCO3)< 1,0 ppm< 1,0 ppm
Total hardness (as CaCO3)< 1,5 ppm< 1,5 ppm
Dissolved organics (TOC as C)< 0,5 ppm< 0,5 ppm
Silica (SiO2)< 1,0 ppm< 1,0 ppm
