What can you expect?

  • Fast delivery from stock
  • The best advice from professionals
Advice
Need advice about this product?

You can call us directly at +31 164 265921. If we are closed, you can request a call-back.

Call-back request

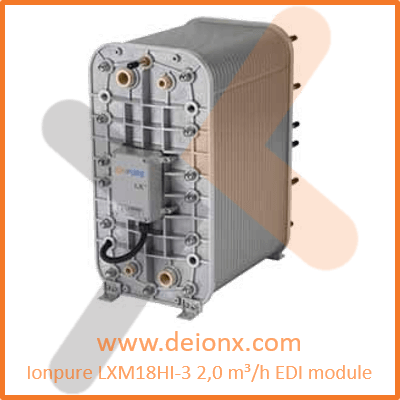

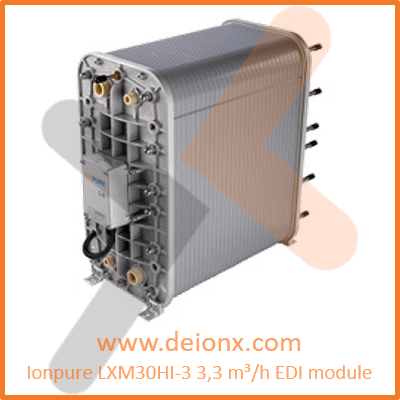

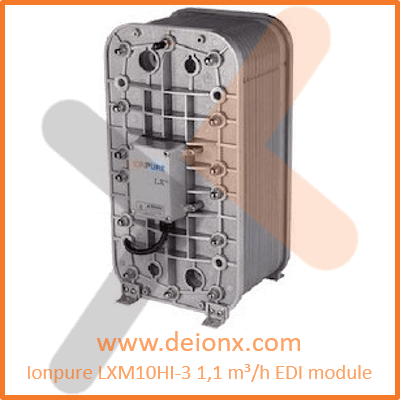

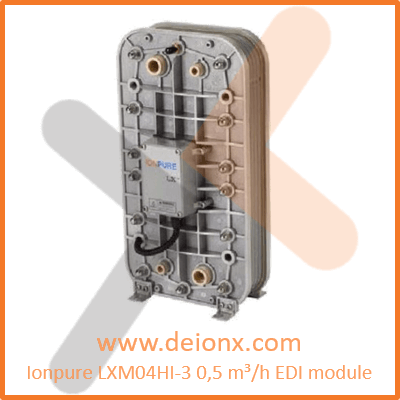

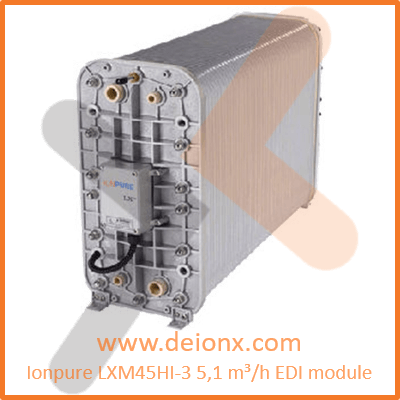

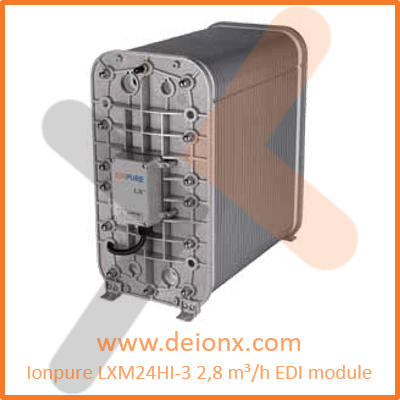

Ionpure LX EDILX-ZThe Ionpure® LX-Z industrial modules firstly generates high purity water through electrodeionization and secondly, are specifically designed for industrial applications. Ionpure modules consistently deliver maximum reliability and certainly, superior performance for power, HPI/CPI and general electronics without regeneration downtime.LX-XThe Ionpure® LX-X industrial modules produce high purity water through electrodeionization for a wide range of industrial applications. LX-X modules consistently deliver maximum reliability and superior performance for power, HPI/CPI, general electronics, food and beverage and laboratory applications without regeneration downtime.LX-HIHot water sanitization is more effective than chemical sanitization for controlling microbial growth. Ease of operation, maximum reliability and low operating costs are signature features of Ionpure® modules. LX-HI modules are ideal for firstly, pharmaceutical, secondly, biotechnology and thirdly, other applications where they desire chemical-free, instant hot water sanitization. LX-HI modules produce high-purity water without regeneration downtime.

LX-Z

  • Power supplies
  • Power controllers
  • Power Cables
  • Earth plugs
  • Connectors

LX-X

  • Power supplies
  • Power controllers
  • Power Cables
  • Earth plugs
  • Connectors

LX-HI

  • Power supplies
  • Power controllers
  • Power Cables
  • Earth plugs
  • Connectors

LX-Z

  • Power Generation (NOx, Boiler Feed)
  • HPI/CPI
  • Food and Beverage
  • General Industry Electro Separation
  • Semiconductor and Electronics Industry

LX-X

  • Power Generation (NOx, Boiler Feed)
  • HPI/CPI
  • Food and Beverage
  • General Industry Electro Separation
  • Semiconductor and Electronics Industry

LX-HI

  • Pharmaceutical
  • Laboratory Semiconductor
  • HPI/CPI

LX-Z

SpecificationsLXM04ZLXM10ZLXM18ZLXM24ZLXM30ZLXM45Z
Shipping weight6891100113123145kg
Operating weight50687791100122,5kg
Height606606606606606606mm
Wide318318318318318318mm
Depth257348488602697907mm
Minimum flowrate0,220,551,11,41,652,55m3/h
Nominal flowrate0,441,12,02,83,35,1m3/h
Maximum flowrate0,671,653,14,25,117,67m3/h
Maximum Voltage53133240320400600VDC
Typical Performance
Product Quality
Product Resistivity @ min flow@ nom flow@ max flow>17 MOhm.cm**> 15 MOhm.cm**> 7 MOhm.cm**
Silica (SiO2) Removal90 - 99 %Depending on feed water conditions
* Actual performance may be determined on projection from DeionX.**Performance based on maximum Feed Water Conductivity Equivalent (40 µS/cm)
Operating Parameters
Recovery90 – 95 %
Maximum Feed Pressure7 bar
DC Amperage0 – 6 Amp
Pressure Drop Range at Nominal Flow1,4 – 2,1 bar
Maximum Feedwater Specifications
Feed water conductivity equivalent, including CO2 and Silica< 40 µS/cm
Feed water sourceRO permeate
Inlet pressure1,4 - 7 bar
Maximum Free chlorine (as CI)< 0,02 ppm
Iron (as Fe)< 0,01 ppm
Manganese (as Mn)< 0,01 ppm
Sulfide (S-)< 0,01 ppm
PH4 - 11
Total hardness (as CaCO3)< 1,0 ppm
Dissolved organics (TOC as C)< 0,5 ppm
Silica (SiO2)< 1,0 ppm

LX-X

SpecificationsLXM04XLXM10XLXM18XLXM24XLXM30XLXM45X
Shipping weight6891100113123145kg
Operating weight50687791100122,5kg
Height606606606606606606mm
Wide318318318318318318mm
Depth257348488602697907mm
Minimum flowrate0,220,551,11,41,652,55m3/h
Nominal flowrate0,441,12,02,83,35,1m3/h
Maximum flowrate0,671,653,14,25,117,67m3/h
Maximum Voltage53133240320400600VDC
Typical Performance
Product Quality
Product Resistivity @ min flow@ nom flow@ max flow>17 MOhm.cm**> 15 MOhm.cm**> 7 MOhm.cm**
Silica (SiO2) Removal90 - 99 %Depending on feed water conditions
* Actual performance may be determined on projection from DeionX.**Performance based on maximum Feed Water Conductivity Equivalent (40 µS/cm)
Operating Parameters
Recovery90 – 95 %
Maximum Feed Pressure7 bar
DC Amperage0 – 6 Amp
Pressure Drop Range at Nominal Flow1,4 – 2,1 bar
Temperature min to max5 to 45 ⁰C
Maximum Feedwater Specifications
Feed water conductivity equivalent, including CO2 and Silica< 40 µS/cm
Feed water sourceRO permeate
Inlet pressure1,4 - 7 bar
Maximum Free chlorine (as CI)< 0,02 ppm
Iron (as Fe)< 0,01 ppm
Manganese (as Mn)< 0,01 ppm
Sulfide (S-)< 0,01 ppm
PH4 - 11
Total hardness (as CaCO3)< 1,0 ppm
Dissolved organics (TOC as C)< 0,5 ppm
Silica (SiO2)< 1,0 ppm

LX-HI

SpecificationsLXM04HILXM10HILXM18HILXM24HILXM30HILXM45HI
Shipping weight6891100113123145kg
Operating weight50687791100122,5kg
Height606606606606606606mm
Wide318318318318318318mm
Depth257348488602697907mm
Minimum flowrate0,220,551,11,41,652,55m3/h
Nominal flowrate0,441,12,02,83,35,1m3/h
Maximum flowrate0,671,653,14,25,117,67m3/h
Maximum Voltage53133240320400600VDC
Typical Performance
Product Quality
Product Resistivity @ min flow@ nom flow@ max flow>17 MOhm.cm**> 15 MOhm.cm**> 7 MOhm.cm**
Silica (SiO2) Removal90 - 99 %Depending on feed water conditions
* Actual performance may be determined on projection from DeionX.**Performance based on maximum Feed Water Conductivity Equivalent (40 µS/cm)
Operating Parameters
Recovery90 – 95 %
Maximum Feed Pressure7 bar
DC Amperage0 – 10 Amp
Pressure Drop Range at Nominal Flow1,4 – 2,1 bar
Maximum Feedwater Specifications
Feed water conductivity equivalent, including CO2 and Silica< 40 µS/cm
Feed water sourceRO permeate
Inlet pressure1,4 - 7 bar
Maximum Free chlorine (as CI)< 0,02 ppm
Iron (as Fe)< 0,01 ppm
Manganese (as Mn)< 0,01 ppm
Sulfide (S-)< 0,01 ppm
PH4 - 11
Total hardness (as CaCO3)< 1,0 ppm
Dissolved organics (TOC as C)< 0,5 ppm
Silica (SiO2)< 1,0 ppm
Request quote
