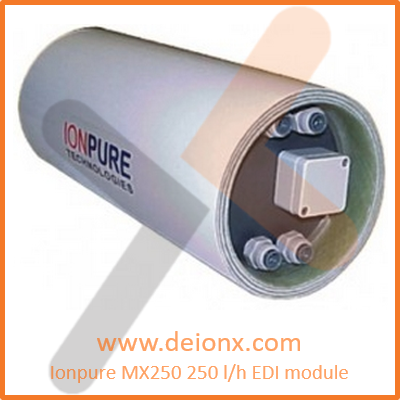

Ionpure MX EDI modules
Ionpure MX EDI modules
Ionpure MX EDI modules
Ionpure MX EDI modules
Ionpure MX EDI modules
Ionpure MX EDI modules
Ionpure MX EDI modules

Ionpure MX EDI modules

Add to quote

What can you expect?

  • Fast delivery from stock
  • The best advice from professionals
Share DeionxAsk a question
Advice
Need advice about this product?

You can call us directly at +31 164 265921. If we are closed, you can request a call-back.

Call-back request

DescriptionOptionsApplicationsSpecificationsDownloads

Features

  • Generates mixed-bed quality deionized water without the use of chemicals
  • Significantly lower operating costs, than conventional ion exchange
  • No need for acid/caustic, neutralization system or exchangeable DI tanks
  • Double O-ring seal guarantees leak-free operation
  • Continuous production with consistent quality
  • Concentrate recirculation and brine injection not required
  • Continuous operation

Quality Assurance

  • Firstly, CE marked.
  • Secondly, each module had a factory test to meet strict industry standards.
  • Thirdly, manufactured in an ISO 9001 and ISO 14000 quality and environmental management system.
  • Power supplies
  • Power controllers
  • Earth plugs
  • Connectors
  • Systems
  • Laboratory / Pharmaceutica
  • HPI/CPI
  • Food and Beverage
  • General Industry Electro Separation
  • Semiconductor and Electronics Industry
SpecificationsMX030MX060MX125MX250MX500
Shipping weight5,4kg
Length184213274393629mm
Diameter178178178178178mm
Minimum flowrate153062,5125250m3/h
Nominal flowrate3060125250500m3/h
Maximum flowrate4590187,5375750m3/h
Maximum Voltage200200200400600VDC
Typical Performance
Product Quality
Product Resistivity>16 MOhm.cm*
Silica (SiO2) Removal90 - 99 %Depending on feed water conditions
* Actual performance may be determined on projection from DeionX.
Operating Parameters
Recovery90 – 95 %
Feed Pressure1,4 - 5 bar
DC Amperage0 – 2,5 Amp
Pressure Drop Range at Nominal Flow0,7 – 1,4 bar
Maximum Feedwater Specifications
Feed water conductivity equivalent, including CO2 and Silica< 40 µS/cm
Feed water sourceRO permeate
Temperature min to max5 to 45 ⁰C
Inlet pressure1,4 - 7 bar
Maximum Free chlorine (as CI)< 0,02 ppm
Iron (as Fe)< 0,01 ppm
Manganese (as Mn)< 0,01 ppm
Sulfide (S-)< 0,01 ppm
PH4 - 11
Total hardness (as CaCO3)< 1,0 ppm
Dissolved organics (TOC as C)< 0,5 ppm
Silica (SiO2)< 1,0 ppm
