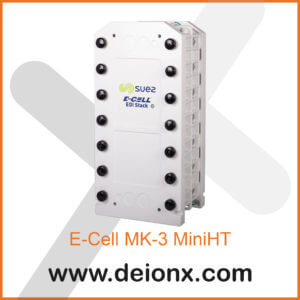

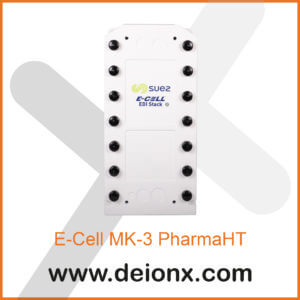

E-Cell MK-3 MiniHTE-Cell MK-3MiniHT and MK-3PharmHT stacks are hot water sanitizable EDI stacks which use electrical current to deionize and polish reverse osmosis (RO) permeate water. The product water quality for the system is at greater than USP quality levels, required in today’s Pharmaceutical applications.Features
  • Provide ultrapure water for industrial applications. For instance, Power, Semiconductor and General Industry.
  • Next, produce Mixed Bed quality water continuously.
  • Require no caustic or acid for the regeneration of ion exchange resin within the stack.
  • Be leak-free, guaranteed.
  • Lastly, eliminate brine injection and concentrate recirculation, simplifying system design
Quality Assurance
  • Firstly, CE, UL & CSA marked
  • Secondly, manufactured in an ISO 9001:2000 facility

The options we have for you

Flexible to meet your needs:
  • Flow and pressure transmitters
  • Isolation valves
  • Automatic valves
  • Piping and frame material
  • Cleaning connections (CIP)
  • Instrumentation type and brand

Contact us for more detailed information

We would be happy to provide you with more detailed information about the E-Cell MK-3MiniHT and MK-3PharmHT stacks and what possibilities exist in terms of service by Deionx. We would therefore like to invite you to contact us and make an appointment for a closer introduction. We can be reached via phone number +31 164 265921.
  • Flow and pressure transmitters
  • Isolation valves
  • Automatic valves
  • Piping and frame material
  • Cleaning connections (CIP)
  • Instrumentation type and brand
  • Pharmaceutical
  • Laboratory Semiconductor
  • HPI/CPI
  • Food and Beverage
  • Microelectronics Industry
  • Power Generation (NOx, Boiler Feed)
  • General Industry Electro Separation
Stack Specifications
MK-3PharmHT
Nominal flow4,1 m³/h
Maximum flow1,6 to 4,6 m³/h
Shipping weight, approx.92 kg
Dimensions (w x h x d), approx.31 x 61 x 66 cm
Typical Performance
Resistivity>16 MOhm·cm
Sodium< 3 ppb
Silica (SiO2) RemovalUp to 99% or < 5 ppb
Boron Removal> 95 %
Operating Parameters
RecoveryUp to 97 %
1Concentrate flowCounter current to Product flow
Voltage0 – 300 VDC0 to 400 VDC
Amperage0 to 5,2 ADC
Inlet Pressure (Counter Current)4,1-6,9 bar
Inlet Pressure (Co-Current)3,1-6,9 bar
Pressure Drop at Nominal Flow1,4-2,8 bar
Maximum Feedwater Specifications
Feedwater - Total Exchangeable Anions (TEA as CaCO3)< 25 mg/l
Feedwater – Conductivity, NaHCO3 equivalent< 43 µS/cm
Temperature5 to 40 ⁰C
Total hardness (as CaCO3)< 1.0 mg/l
Silica (SiO2)< 1.0 mg/l
Total Organic Carbon, TOC as C< 0.5 mg/l
Total ChlorineTotal Chlorine < 0.05 mg/l
1Co-flow operation is acceptable when feed hardnessconcentrations are <0.1 ppm as CaCO3.
