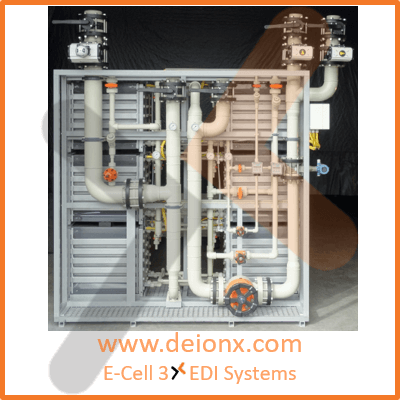

E-Cell 3X EDI Systems

Periode

Capacity

What can you expect?

Ask a question

Need advice about this product?

You can call us directly at +31 164 265921. If we are closed, you can request a call-back.

Firstly, provide the highest guaranteed Ultrapure Water quality for industrial applications including Power, Semiconductor and General Industry.
Secondly, easy installation, operation and maintenance.
Thirdly, standard system configuration, including: Polypropylene piping Glass Reinforced (GRP) frame Rota meters and pressure gauges
Next, best water quality producing EDI system: Resistivity up to 18,2 MΩ∙cm Boron removal typically > 96% Power consumption 0,15-0,45 kWh/m3 Recovery allowable up to 97%
Lastly, highest guarantees: Resistivity > 16 MΩ∙cm Silica < 5 ppb

Typical Performance
Product Quality
Resistivity	>16 MOhm·cm
Sodium	< 3 ppb
Silica (SiO2) Removal	Up to 99% or < 5 ppb
Boron Removal	> 95 %
Operating Parameters
Recovery	Up to 97 %
Inlet Pressure at nominal flow	3.1 to 6.9 bar
Pressure drop at nominal flow	1.4 to 2.8 bar
Actual performance may vary depending on site conditions. Consult DeionX to verify actual performance.

Maximum Feedwater Specifications
Feedwater - Total Exchangeable Anions (TEA as CaCO3)	< 25 mg/l
Feedwater – Conductivity, NaHCO3 equivalent	< 43 µS/cm
Temperature	5 to 40 ⁰C
Total hardness (as CaCO3)	< 1.0 mg/l
Silica (SiO2)	< 1.0 mg/l
Total Organic Carbon, TOC as C	< 0.5 mg/l
Total Chlorine	< 0.05 mg/l
